MTH I-2S_E-1S CNC

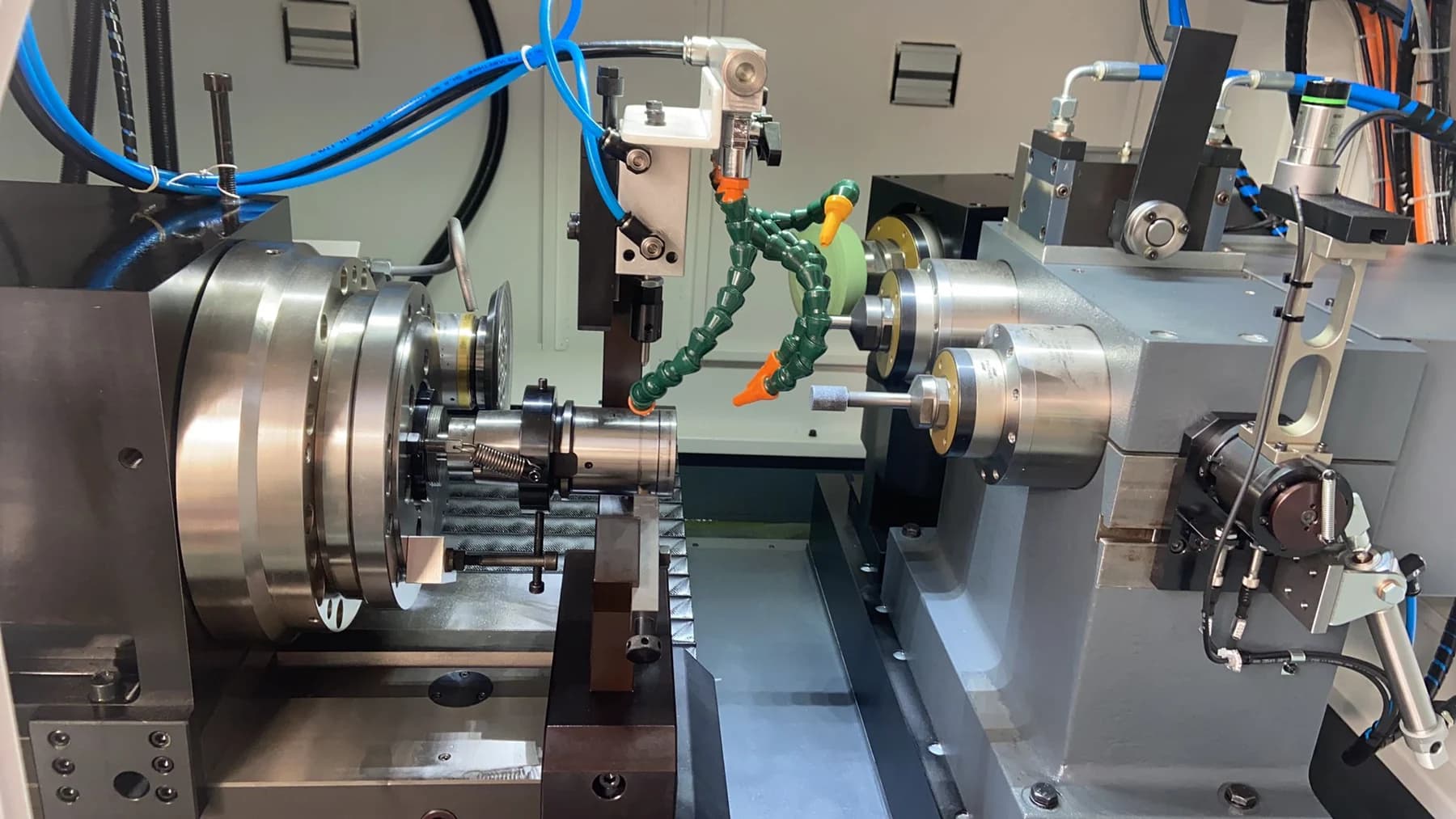

The only machine in the MTH fleet that grinds both internal and external surfaces on the same head, with 3 dedicated motor spindles. Built by Meccanica Torri Srl to MTH specification, rebuilt starting from an existing machine.
- Number of motor spindles
- 3
- Positioning accuracy (X and Z)
- 0.0002 mm
- Weight
- ~4.5 tonnes
Can't find the machine you are looking for? We find the machine for you
What sets it apart
Unlike the other internal grinding machines in the MTH catalogue (Voumard 110 CNC, MTH I-2S CNC), this machine also grinds external surfaces, thanks to a dedicated motor spindle with a wheel peripheral speed of up to 45 m/sec.
Technical specifications
| Specification | Value |
|---|---|
| Max internal grinding depth | 100 mm |
| Number of motor spindles | 3 |
| Internal grinding spindle speeds | 42,000 / 60,000 rpm |
| External grinding spindle speed | 6,600 / 18,000 rpm |
| Max internal wheel diameter | 50 mm |
| Max external wheel diameter | 100 mm |
| External wheel peripheral speed | 45 m/sec |
| Workpiece diameter (internal / external) | max 80 mm / max 50 mm |
| Max workpiece length | 350 mm |
| X-axis stroke | 650 mm, speed 6,500 mm/min |
| Z-axis stroke | 200 mm, speed 10,000 mm/min |
| Positioning accuracy (X and Z) | 0.0002 mm |
| C-axis speed | 1–400 rpm |
| Max eccentricity error | 0.0002 mm |
| Weight | ~4.5 tonnes |
| CNC | Siemens Sinumerik 840D SL |
Who built it
Built by Meccanica Torri Srl to MTH specification, rebuilt starting from an existing machine. Not a factory-new machine, consistent with the rebuilding approach of the whole MTH fleet.
FAQ
Is it the same machine as the MTH I-2S CNC?
No. They are two different machines: the MTH I-2S CNC grinds internal surfaces only, this one also grinds external surfaces and has a different specification table.
